OSG PHOENIX PSE / PSEL / PMD INSERTS

90 Degree indexable shoulder cutter inserts

EDP: 7814077
ZDKT150512SR-GM XP3035
Description

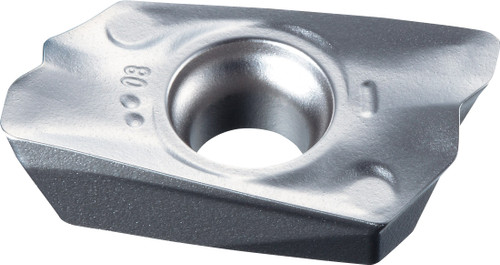

Indexable_-_Mill_-_PHOENIX_PSE_-_List_78PSE_-_Insert_-_SM
P

Steel

Steels : P
Good
Best
M

Stainless Steel

Stainless Steels : M
Good
Best
K

Cast Iron

Cast Iron : K
Good
Best
P

Steel

Steels : P
Good
Best
M

Stainless Steel

Stainless Steels : M
Good
Best
K

Cast Iron

Cast Iron : K
Good
Best
Description
PHOENIX PSE is a versatile series of 90° end mills and facemills, ideal for a wide variety of rough and finish milling applications including facing, side milling, slotting, ramping and helical milling.
Features & Benefits
Bottom notch Efficient ramping and helical milling
End mill and face mill styles, Inch and Metric Complete Offering
Insert variety Multiple grades and chip breakers for all materials
Side cutting edge "margin" Superior surface finishes in side milling applications
Stocked
ALTERNATIVE PRODUCT
VIEW PRODUCT
CONTACT US
Loading...

MOQ: 10

Preview PDF

PDF generation may take time depending on details of the product.

DesignationZDKT150512SR-GM
Insert Size - Metric (AxB)15 x 9.3
Thickness - Metric (T)5.56
Wiper/Secondary Cutting Edge Length - Metric (b)1.2
Max Axial Depth of Cut - Metric (Aa Max)14
Number of Cutting Edges2
Chip BreakerGM
CoolantNo
GradeXP3035
UnitsMetric
Hardness (HRA)89.5
View Catalog PageHere
View Speed and Feed PageHere
